高端滑環領導者

滑環解決方案提供商

服務熱線：0755-29702760/29702762

收藏我們聯系我們

產品中心Products

首頁>產品中心>Pancake Slip Rings

PSR-P82-10 Pancake Slip Ring

產品類型：Pancake Slip Rings 產品型號：PSR-P82-10 Pancake Slip Ring

PSR-PS is a pancake type slip rngs that with any size through -bore and 10mm Min thickness , low torque , exactly preformace for transfer signal and power wih rotation . Use precious metal as contact material , enclose type and serperate type is available...

性能

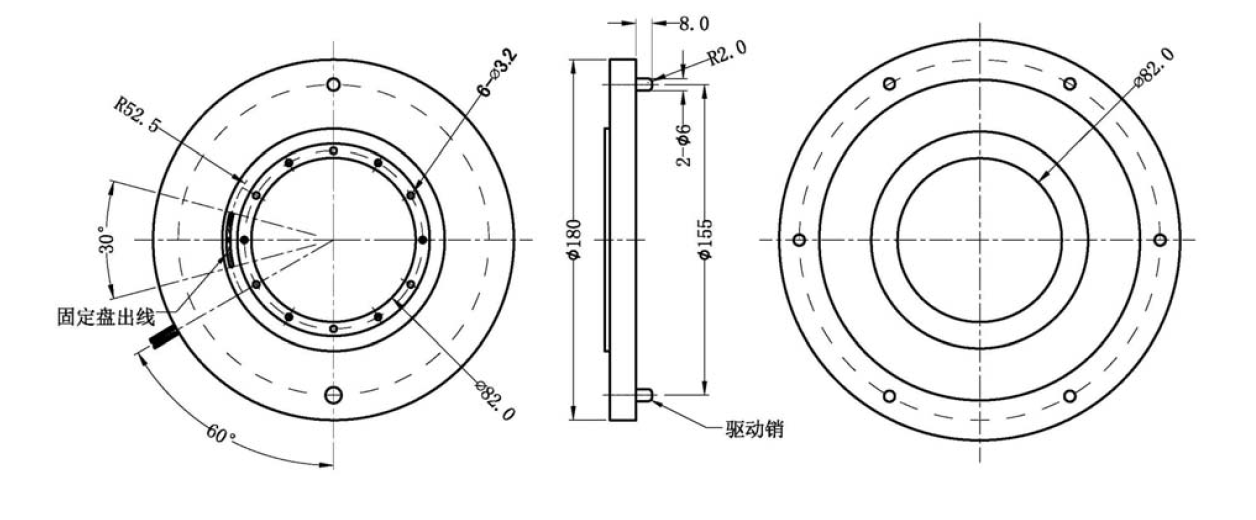

尺寸圖
特征

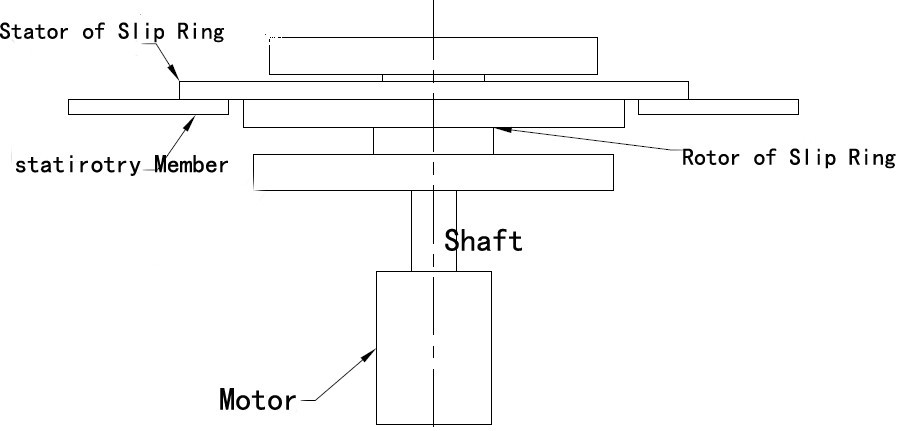

安裝方法
訂貨號
下載

Electrical Spec.		Options
Rating voltage	380VAC	Flange for set up
Rating current	5A /Ring，10A /Ring，15A /Ring	size:38mm to 2m outside diameter(depend on circuits),and 10mm Min length
Insulation resistance	1000MΩ@500VDC	Can combine more circuits:1-100Ring
Dielectric strength	600VDC@50Hz	Higher voltage and current capacity
Electrical noise	10mΩ@6VDC,50mA, 5Rpm	Various radial exits are available
Mechanical Spec		Environment
Speed	300Rpm	Working temperature	-40℃~+80℃
Torque	40N.cm	Mechanical vibration	MIL-SID-810E
Seal class	IP54 (IP68Options)	Humidity	10% to 90% RH non-condensing
Contact material	Precious Metal	Materials	Lead Free,RoHS compliant
Lead Wire	12color 0.5mm²Teflon wire	CE Certified	YES
Life	50million revolutions

The Specification show a sample only , more information , please contact us
