High speed slip ring

產品類型：High Speed Slip Rings 產品型號：PSR-HSB-10

PSR-HS series is designed to mout on the end of a rotating shaft and tansmission electrical connection to strain gages , thermocouples, or other sensors from rotor to stator with high speed , up to 12000rpm with no need cooling . The slip ring brushes and rings are made of precious metals , which minimize noise and enable the assemblies to be used for low level instrumentation signal. This series are available in 4, 6, 8, and 10 circuit slip ring assemblis with lightweight and compact siz...

性能

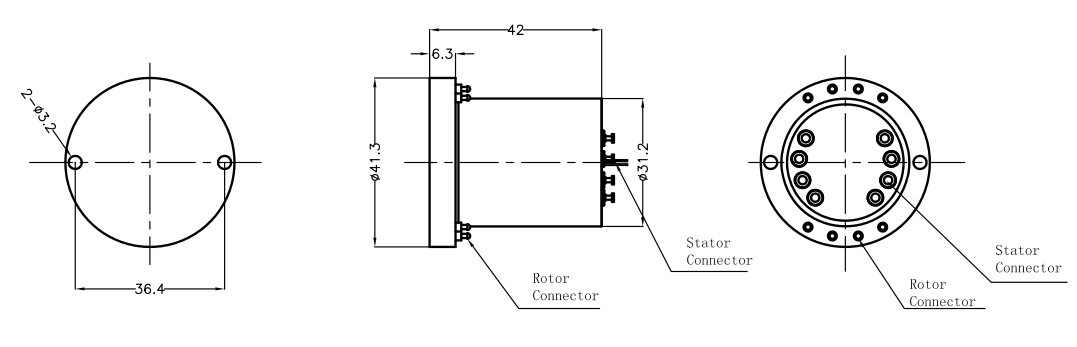

尺寸圖
特征
安裝方法

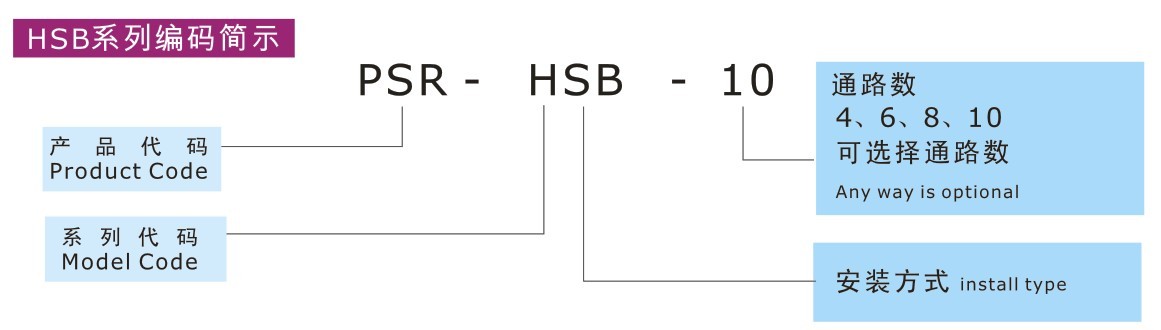

訂貨號
下載

Electrical Spec.		Options
Rating voltage	380VAC	Flanfe for set up
Rating current	5A ,10A,15A……	Can combine signal and power in same slip ring
Insulation resistance	1000M@500VDC	Can combine more circuits:1-36Ring
Dielectric strength	600VDC@50Hz	higher voltage and current capacity
Electrical noise	70mΩ @6VDC,50mA, 5Rpm	various radial exits are available
Mechanical Spec		Environment
Speed	1-12000Rpm	Working temperature	-40℃~+120℃
Torque	10N.cm	Relative humidity	10% to 95% RH non-condensing
Seal class	IP54 (IP68Options)	Materials	Lead Free,RoHS compliant
Contact material	Precious Metal	CE Certified	YES
Life	100million revolutions	Mechanical vibration	MIL-SID-810E
